Tripp Lite HDMI Over Cat5 Box Type Active Extender Remote Units

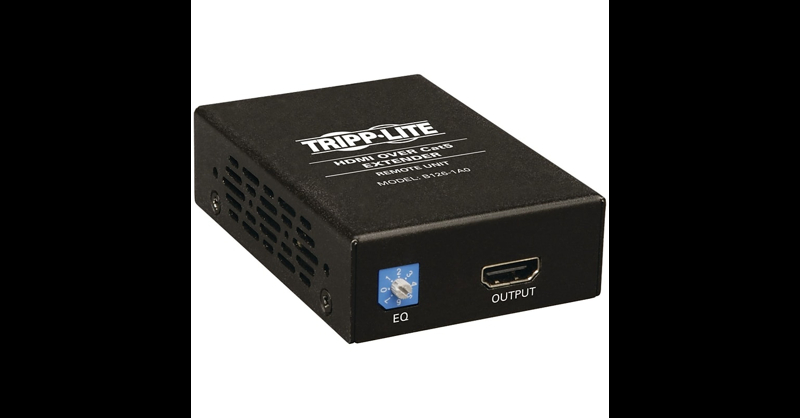

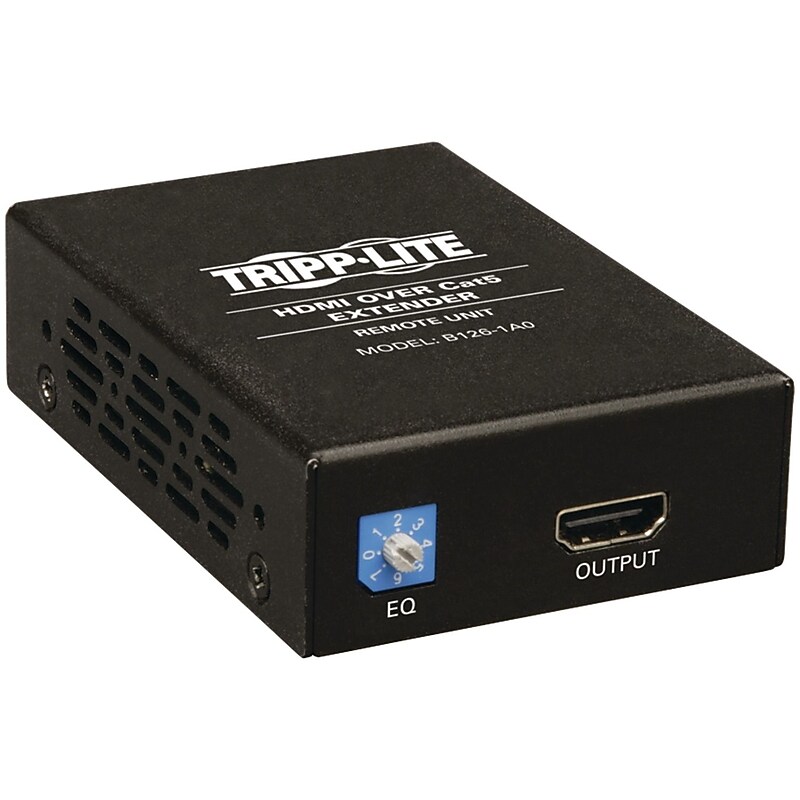

Tripp Lite HDMI active extender remote unit has a built-in HDMI male connector which directly plugs into a monitor without the need for an additional cable. Extender unit features a built-in equalization setting for adjustment of the video image. HDMI. Supports 24-bit true color (8-bits per channel). Display style: Splitter. Connector A: HDMI female. Connector B: RJ45 female. Dimensions: 1"(H) x 2 1/2"(W) x 3. 6"(D). 24 Awg, solid wire Cat5e/6 cable, such as tripp lite's N202-series, is required to achieve maximum distance and resolution. Use tripp lite P568-series HDMI cables to connect to HDMI source. 200' at 1080i or 150' at 1080p reception distance. Features a built-in equalization control for adjustment of the video image. Includes: B126-1A0 HDMI over cat5 active extender remote unit, screwdriver for adjustment of equalization, mounting hardware, external power supply (input: 100-240V, 50/60Hz, 0. 5A output: 5V, 2A), owner's manual. Weight: 1 lbs. Warranty: 1 year limited. Tripp Lite HDMI active extender remote unit is compatible with both stereo audio and 7. 1 channel audio system and it extends a 1080p (60Hz) signal to a monitor up to 150 ft.
