Copied 118248-BUR Connector Clamps, Unplated

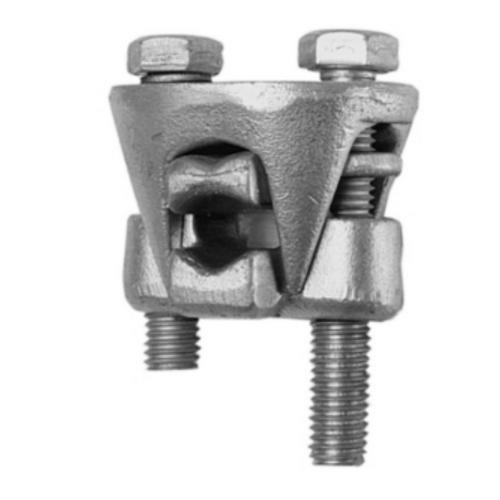

118248-BUR Connector Clamps, Unplated
High-conductivity, non-copper bearing aluminum alloy connector. Spacer bar separates dissimilar conductors. Intended for heavy duty applications,conductor range,Run Cu and Al :400-500.Three-Piece, High-Conductivity, Non-Copper Bearing Aluminum Alloy Connector With Thick Spacer And Aluminum Hardware, Recommended For Heavy Duty Dissimilar Metal Applications, Spacer Separates Conductors And Provides Long Contact Length, Belted Entrances Prevent Chafing And Permit Easier Assembly Of Conductors, Longer, Peened Bolt, Permits Swivel Action For Easier Installation, Neoprene Ring Prevents Loss Of Shorter Bolt, PENETROX Joint Compound Recommended With Aluminum And ACSR, Conductor Spacer: Yes, Armor Rod: Minimum Run Diameter: 0.728 IN, Minimum Tap Diameter: 0.216 IN, Maximum Run And Tap Diameter: 0.814 IN, Conductor Type: Run: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded Copper, Tap: ACSR, 5005, AAAC, Commercial Stranded Aluminum, Commercial Stranded Copper, Installation Torque: 300 IN-LB, Length: 2-5/16 IN, Width: 2-5/8 IN, Height: 3-9/16 IN.
Price Comparison
| Seller | Contact Seller | List Price | On Sale | Shipping | Best Promo | Final Price | Volume Discount | Financing | Availability | Seller's Page |
|---|---|---|---|---|---|---|---|---|---|---|
|
BEST PRICE 1 Product Purchase
|
|
$137.10 | $123.10 |
|
$123.10 | See Site | Visit Store |
