Electric Alarm Unit for Safety Stations

Electric Alarm Unit for Safety Stations

Brand
Guardian Equipment
Manufacturer
N/A
Part Number
AP275-100
GTIN
13536111706
Condition
Product Description

Guardian, AP275-100, Electric Alarm Unit for Safety Stations with Amber Light & HornIncludes:Weatherproof Amber Globe with Protective GridWeatherproof Alarm Horn5' (1524 mm) Flexible Cord3 Prong Cord Connection PointWeatherproof Junction BoxWeatherproof Flow Switch (125 VAC, 5 amp Max, Single Pole, Double Throw)1-1/4" NPT Female InletMounting Bracket120 VAC, 0.8 Amp (Based On 75 Watt Bulb Supplied) Incoming Power Supplied By Others (Connection Size: 3/4" NPT)(2) 1/4"-20 U-Bolts For 1-1/4" Ips PipeFeatures:Installation: Unit is designed for use with combination safety stations, and can be mounted on either the vertical pipe of the station or on a wall adjacent to the unit. 120 volt, 0.3 amp electrical supply is required.Visual Signal: 14 watt, 1060 lumen LED light with weatherproof, shatter-resistant amber lens and protective metal grid.Audible Signal: Weatherproof horn delivers distinctive, urgent signal. Volume is preset at 100 db at 10 feet. An adjustment screw on the front of horn allows adjustment of output sound level.Flow Switch: 1-1/4" IPS single pole, double throw waterproof flow switch for installation in water supply line to emergency unit. Switch senses flow of water when either the eyewash or shower is activated. Flow switch must be installed with tee fitting in horizontal position, flow switch body in vertical position and at least 6" from closest fitting. Direction of flow is marked on switch body.Quality Assurance: Unit is fully assembled, wired and factory tested prior to shipment.Application:Alarm units serve two important functions when installed in conjunction with emergency eyewash and shower equipment. First, alarms serve to alert facility personnel that an accident has occurred and that assistance to the user may be required. Second, alarms deter unintended or malicious operation of the emergency equipment. For this reason, they are advisable in schools and other areas where the possibility of vandalism is present. Alarms are activated by a flow switch that senses the movement of water in the supply line when the safety unit is activated. Once activated, the bright light turns on and the horn sounds loudly.Notes:Flow Switch is Designed to Activate at 2.4 Gpm & Deactivate at 2.0 Gpm.Flow Switch Must Be Installed Vertically in a Horizontal Pipe Run, Upstream of Unit & at Least 6" From Fitting.Sound Output on Horn is Adjustable From 0 Db to 100 Db at 10 Feet.

Available Colors
Available Sizes
1 Offer Price Range: $1,397.14 - $1,862.85
BEST PRICE

Single Product Purchase

$1,397.14
@ Megadepot.com     BUY Now

Price Comparison

Seller Contact Seller List Price On Sale Shipping Best Promo Final Price Volume Discount Financing Availability Seller's Page
BEST PRICE
1 Product Purchase
@ Megadepot.com
Contact Store Call Store Contact Support
$1,862.85 $1,397.14

$1,397.14
See Site Visit Store

Similar Products

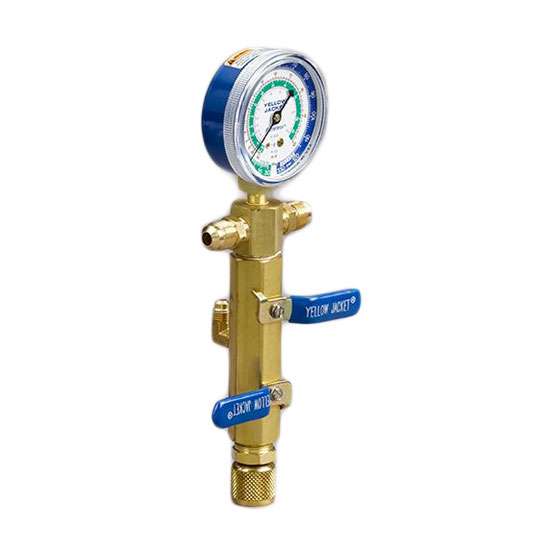

Two Valves with Low Side Gauge Mount

$190.84

VEP Series Flange Head Coupler, 1-1/2" NPT

$481.20

Aluminum CSA French Sign: "Monte-Charge"

$31.61

OSHA Danger Safety Sign "Flammable Material..."

$171.00

Cradle For Receiver

$52.35

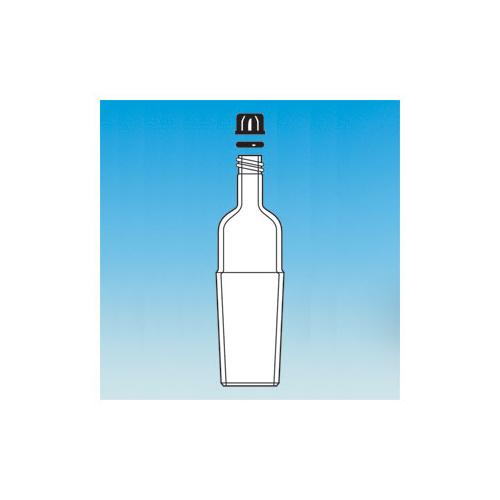

24/40 Joint to 20-400 Thread PTFE Lab Adapter

$177.60

Accu-Shield Sign "Pitch In! Keep Your Area Clean"

$41.45

24/40 Bottom Inner Joint Sampling Lab Adapter

$61.10

Round End Burn Trowel w/ ProForm Handle

$36.27

BradyPrinter A8500 Air Regulator Right, 3.15'' x 4.72''

$386.60

Gooch Crucible, 30mL, Coarse Porosities

$34.95

GUCEE M6 Omnidirectional USB Speakerphone

$52.99

1569 Crocodile Texture Cowhide Leather Crossbody Tote Bag Women Shoulder Bag - Black

$30.43

Heat Stress WBGT Meter NIST Certificate

$417.10

Double Sided Slipper Socks L, Sky Blue

$61.34

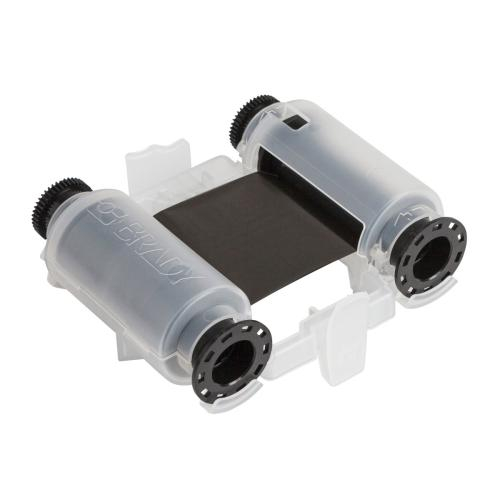

Wraptor Printer Ribbon

$66.34

Safety Sign "Area of Refuge", Arrow Right

$56.89

All American Cutting & Welding Outfit

$407.80

Warning Safety Sign "No Trespassing ..."

$316.10

3/8" Parallel Shank Drill Bit

$14.00

18 LEDs Par Light Stage Lamp Lighting Supported DMX512/ Sound Activated/ Master-slave/ Strobe Mode

$72.28

Slim-Net 28 AWG Patch Cable

$6.75

Blank Harness Label Cover

$57.61

34605 Number Label w/ Legend: 5

$12.14

TheraPutty Exercise Putty, Black, 1 Pound

$38.74

Stacker for TG3

$839.00

Flash Chromatography Column w/ PTFE Plug

$159.20

1-1/2" Polished 90 Deg. Weld Elbow with Tangent

$16.12

Flexible Strainer, 8 mm Hole

$140.70

Cable Quad Shield Coax GHZ 18 AWG BC 1000 Ft

$174.90

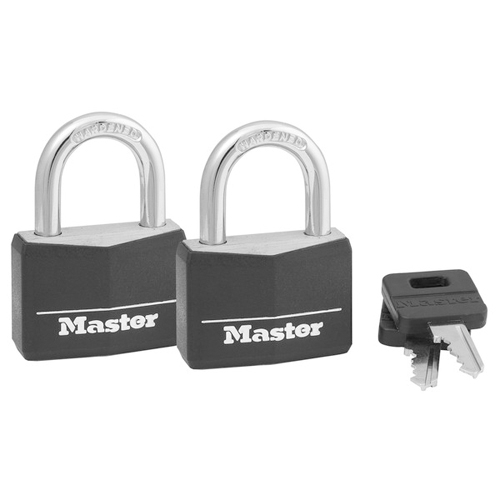

1-9/16" Wide Covered Solid Body Padlock; 2 pcs
